“Every wheel has right
to be renewed.”
Elegance
Long-Awaited User Experience With the Full HD 15.6" or 17.3" touchscreen, you will feel like using mobile phone. User friendly interface, specially designed in ATEK R&D.

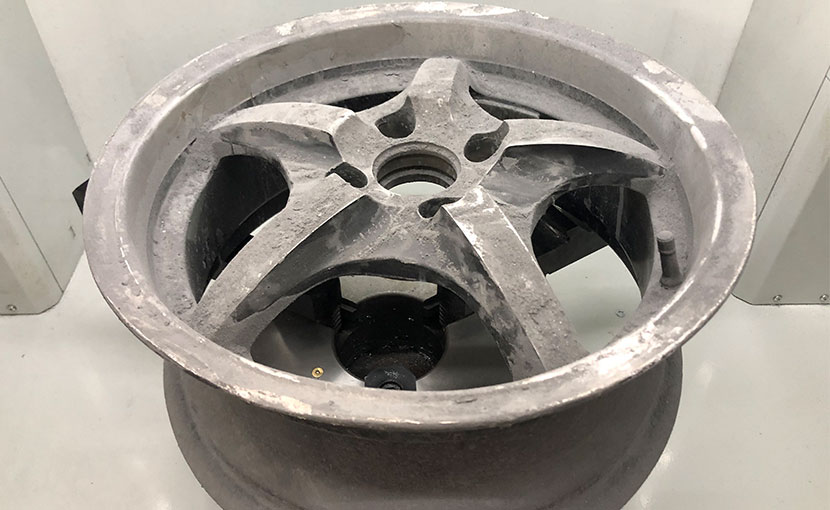

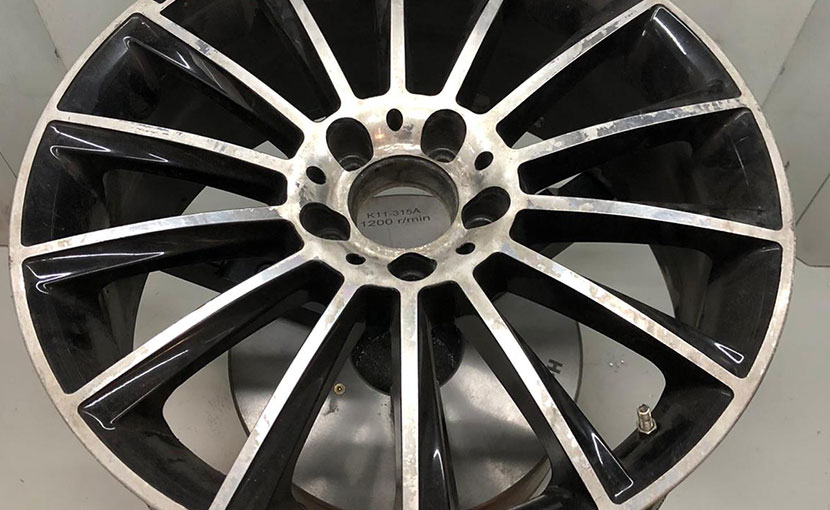

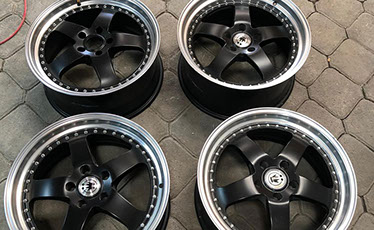

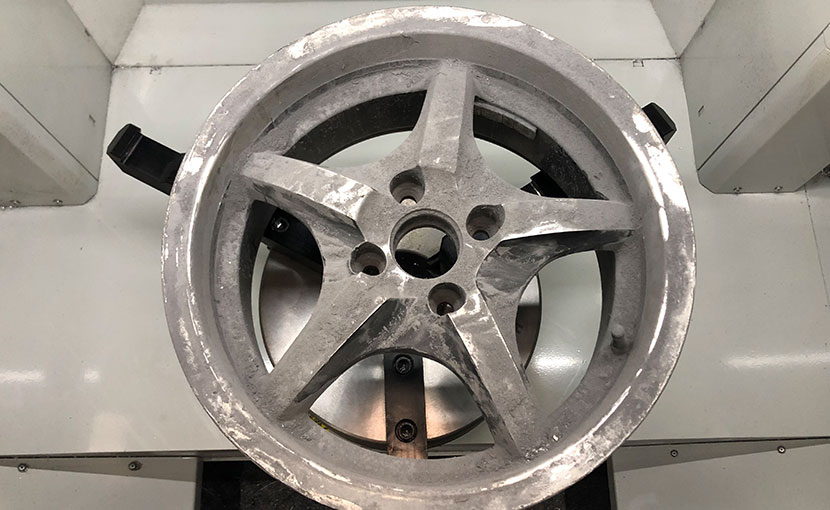

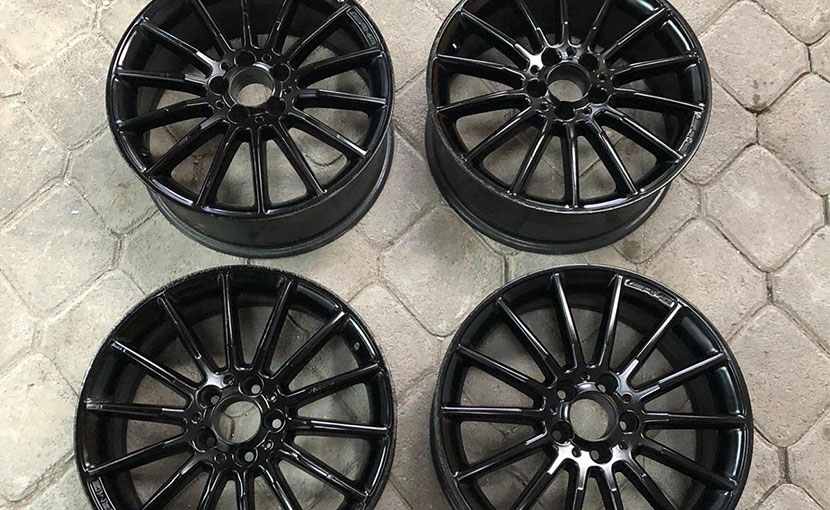

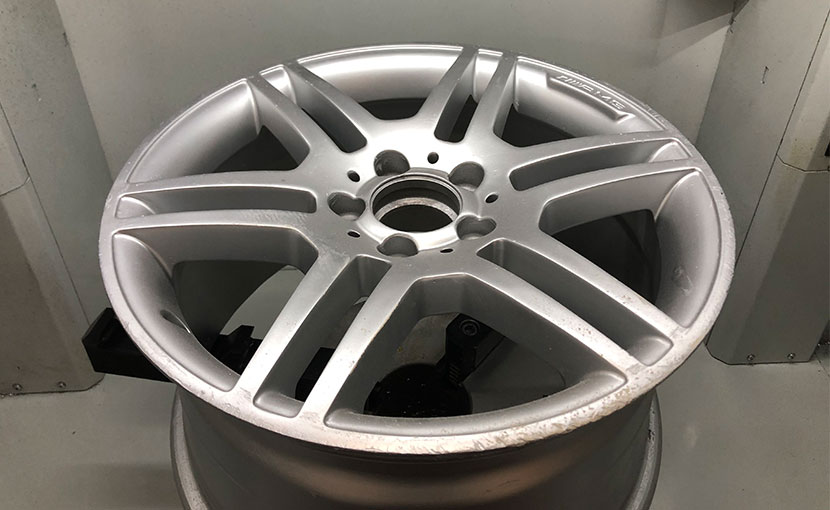

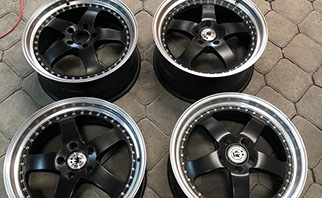

We have developed for you the best solution for the wheels that are not only scratched, but also in need of modification and deserve to be renewed.

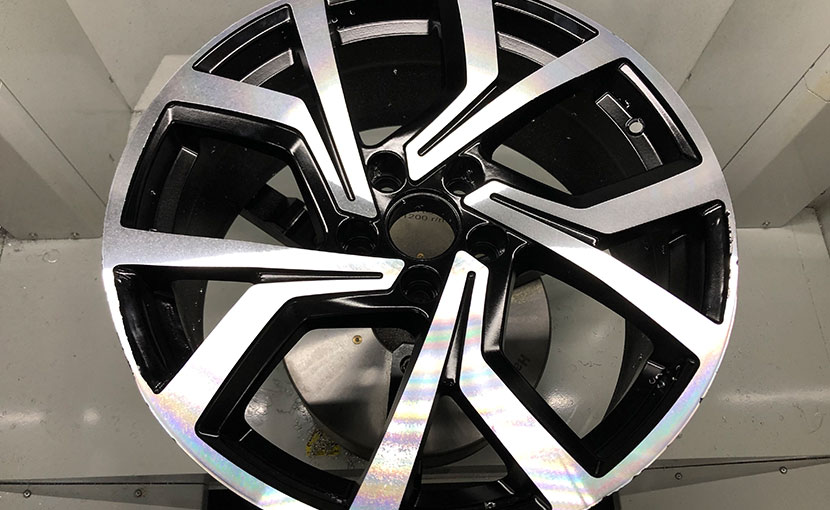

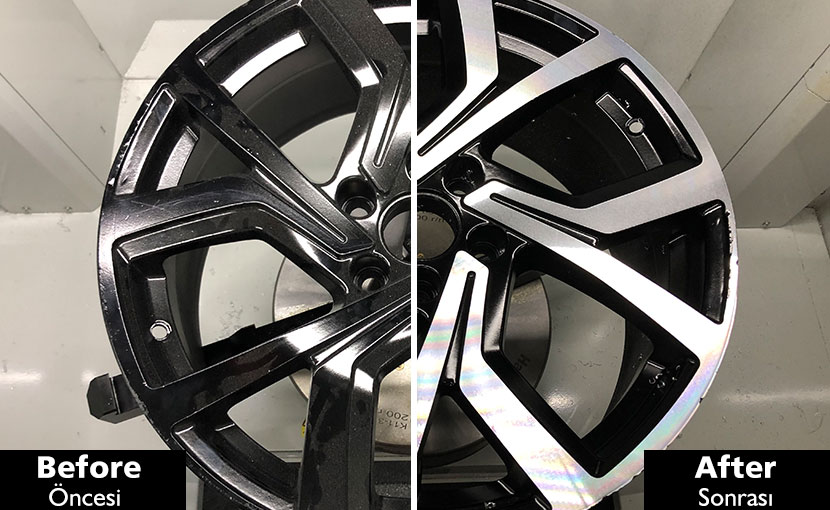

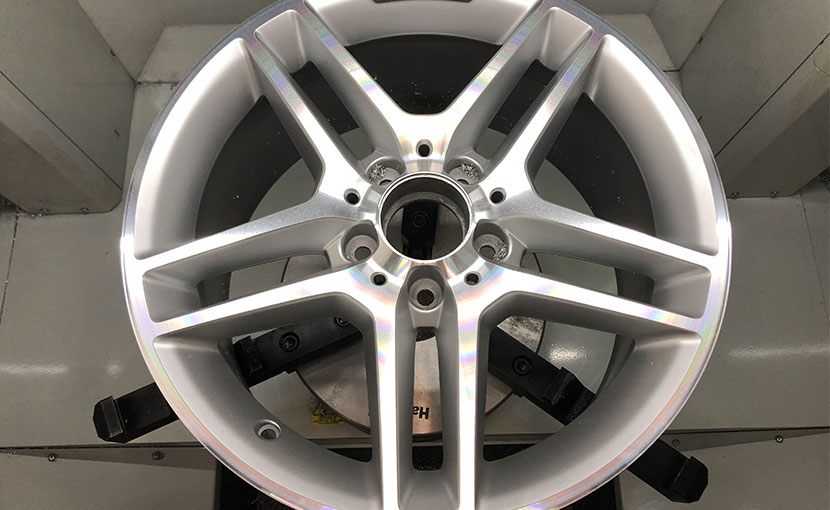

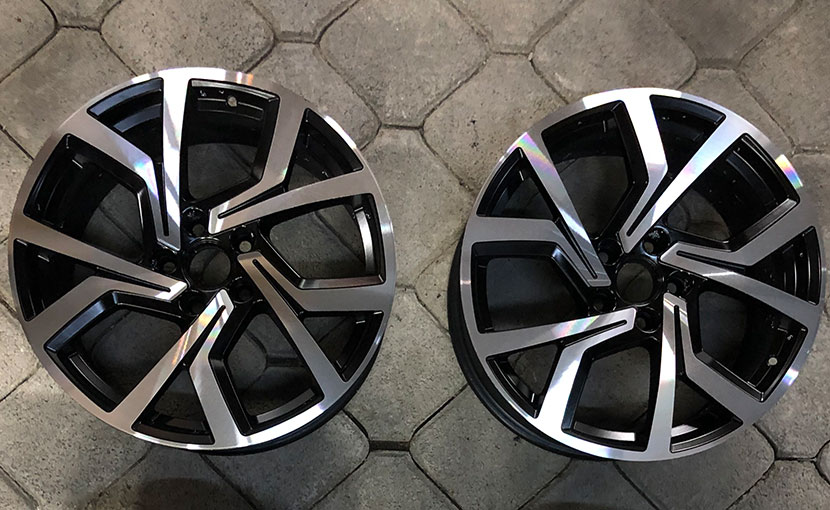

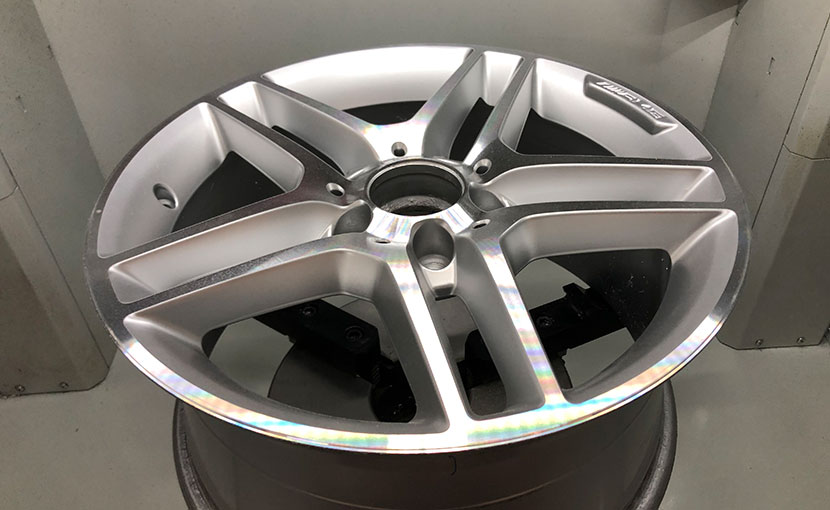

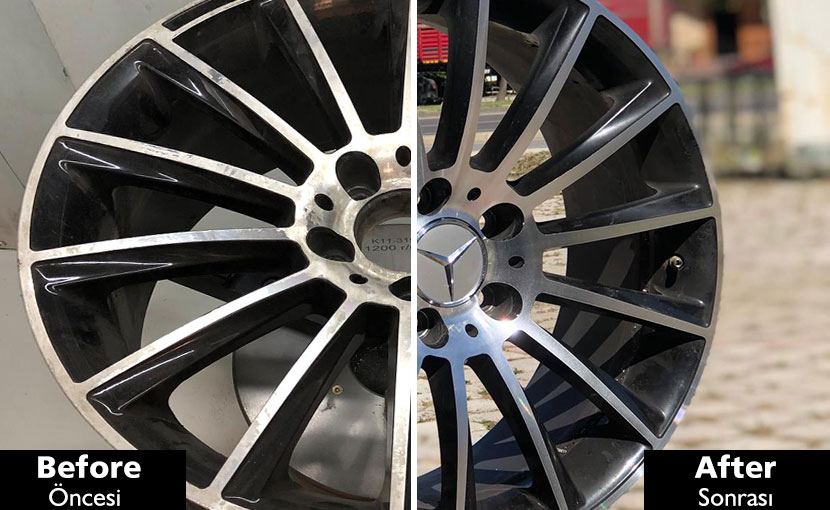

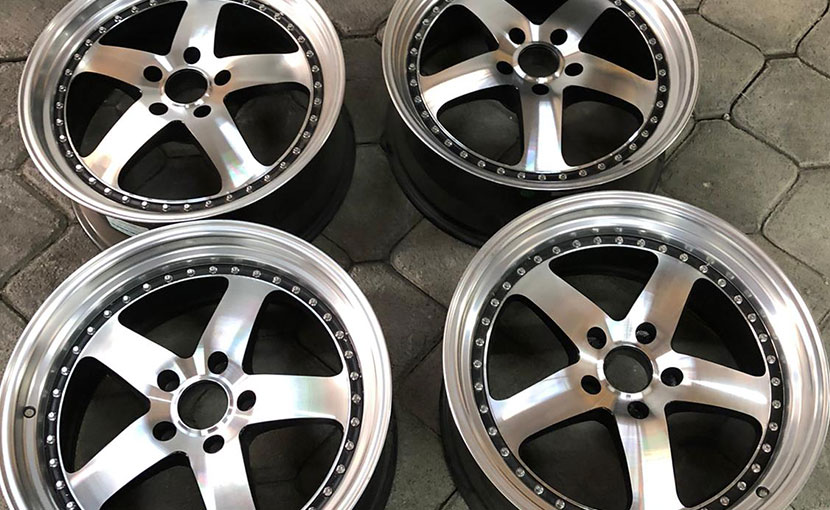

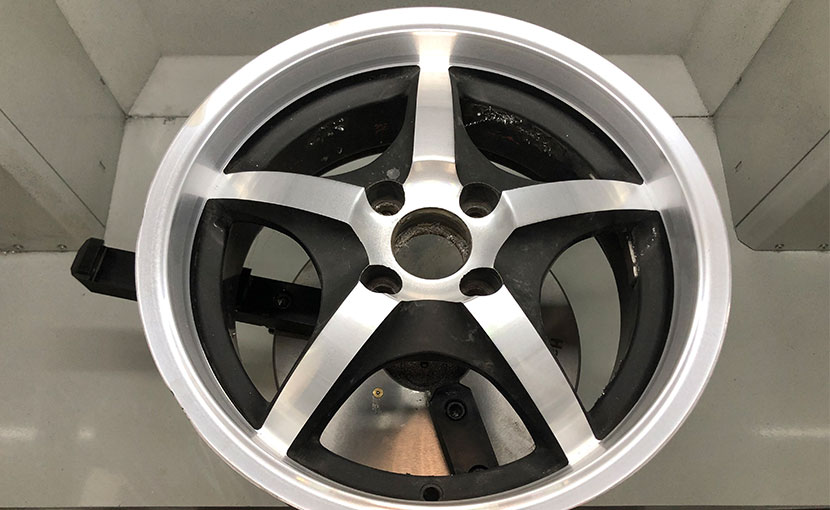

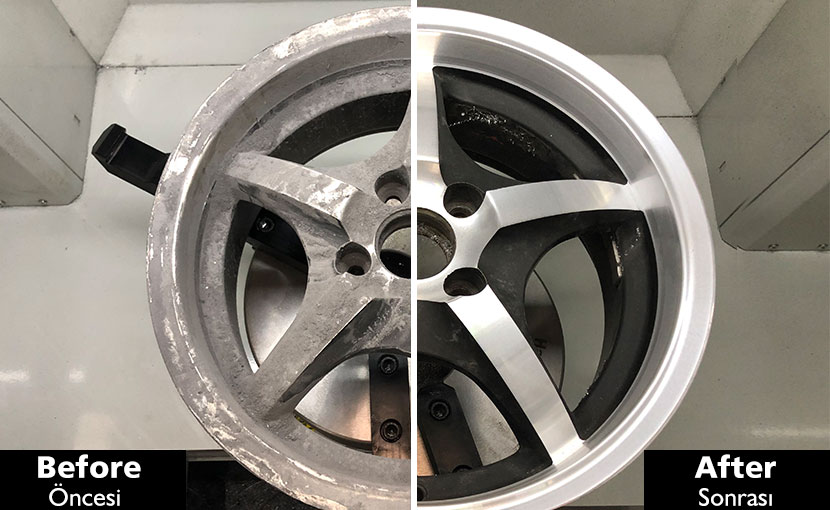

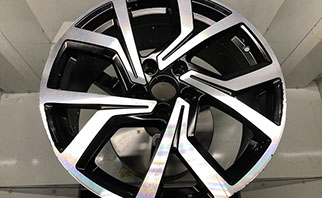

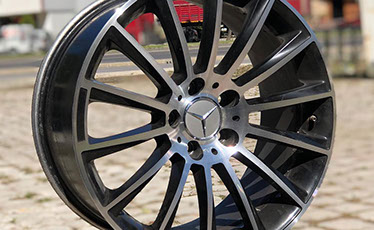

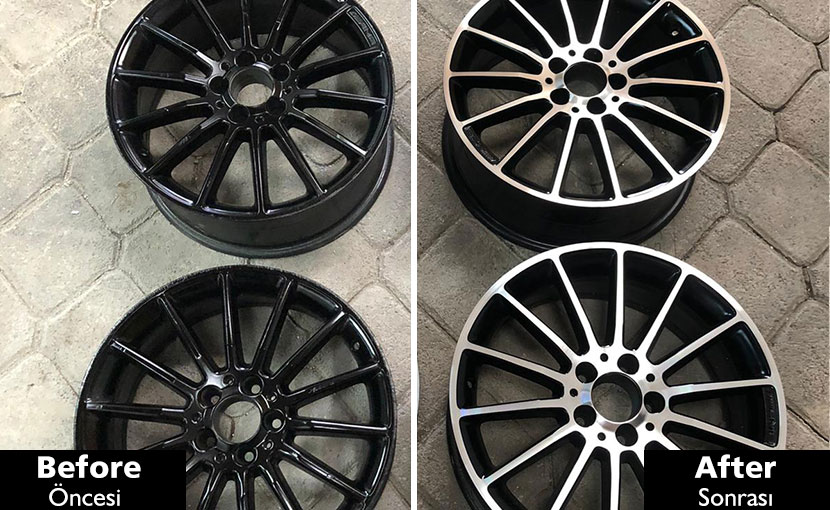

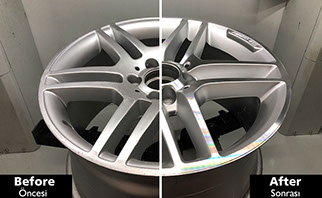

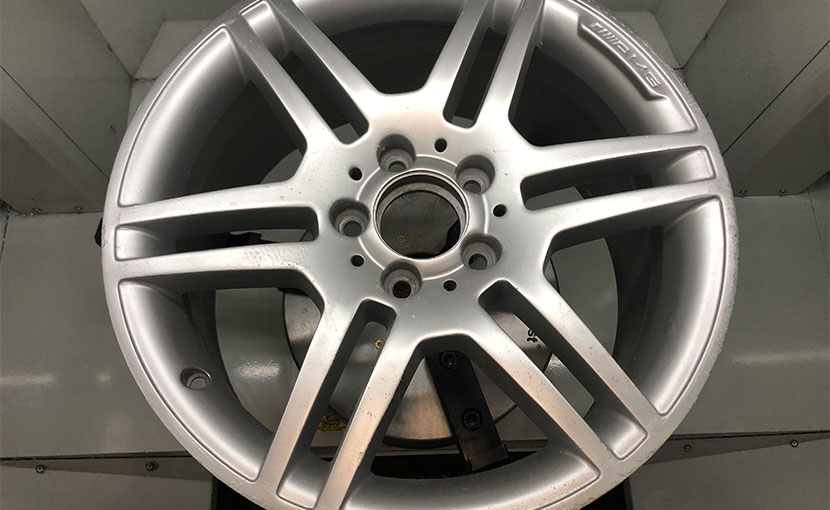

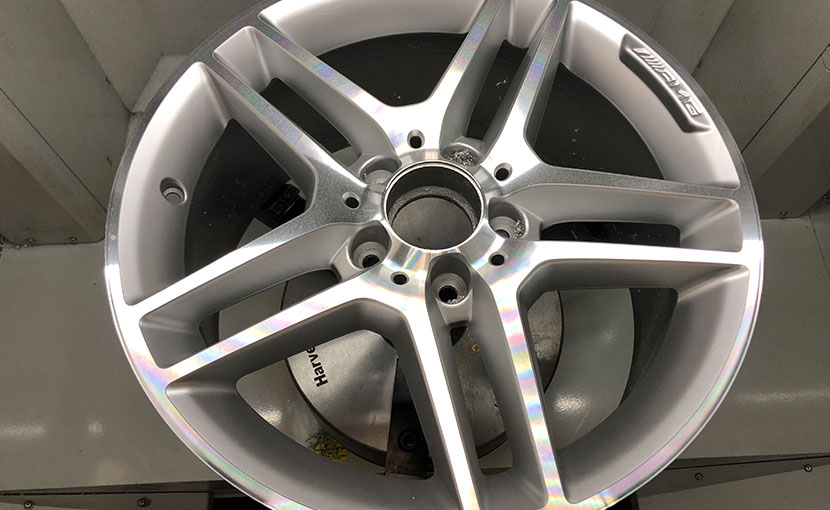

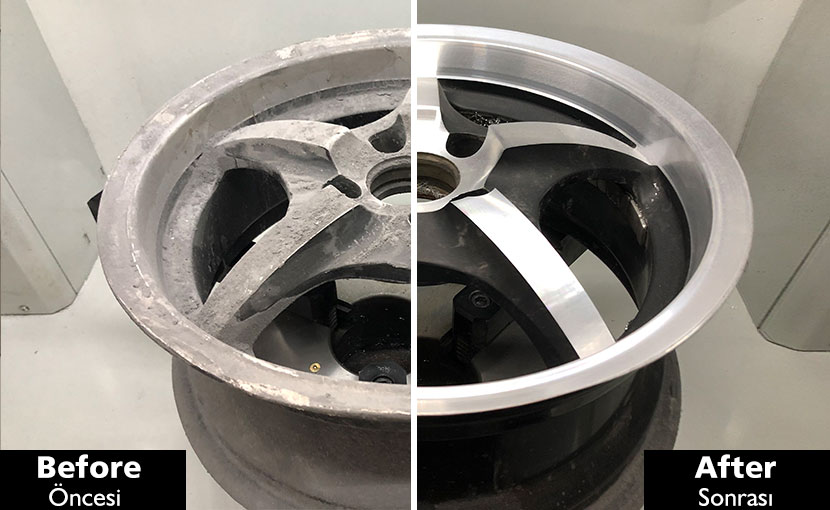

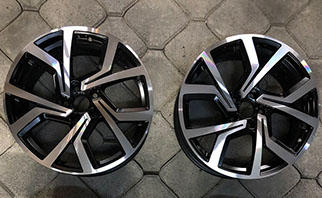

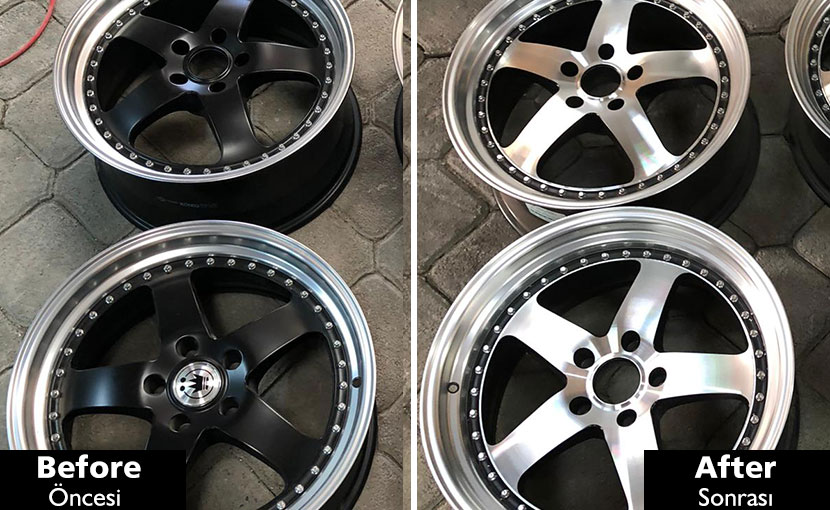

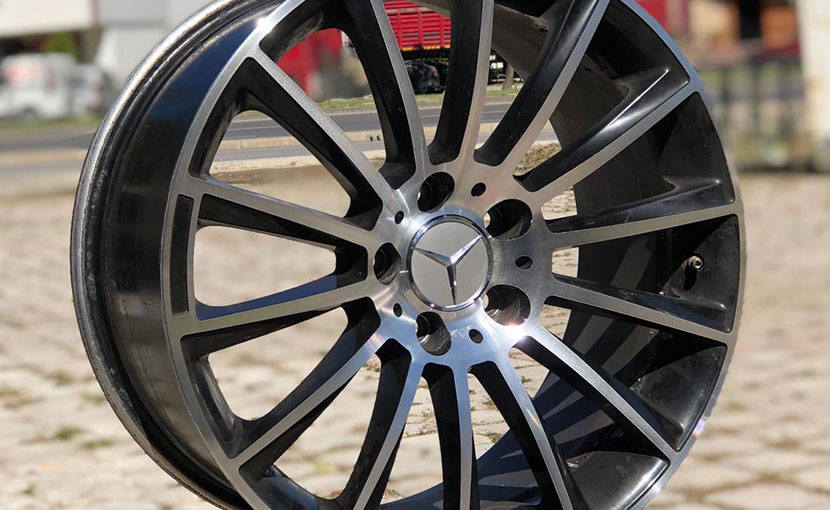

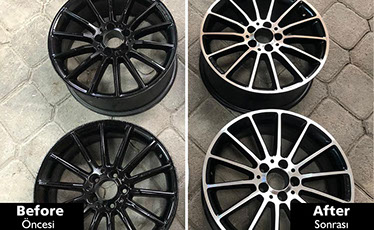

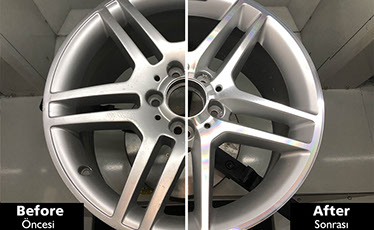

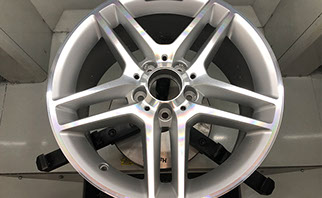

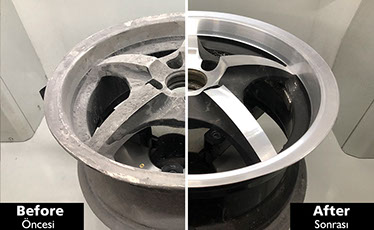

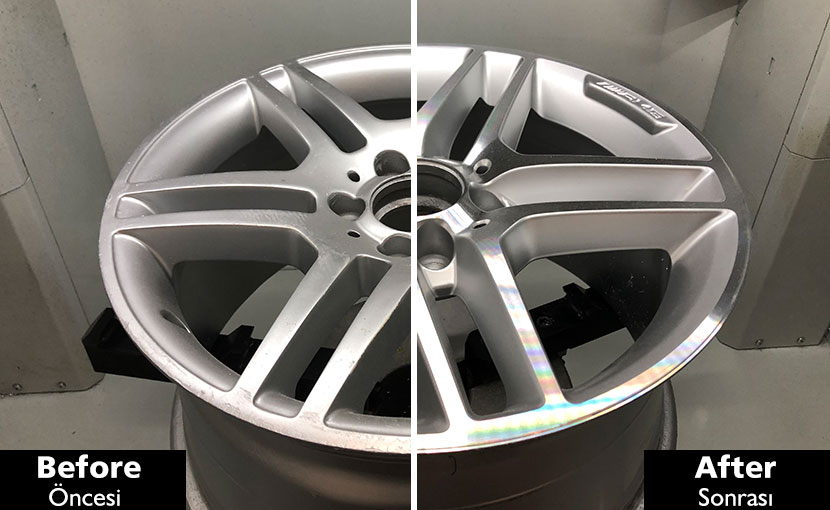

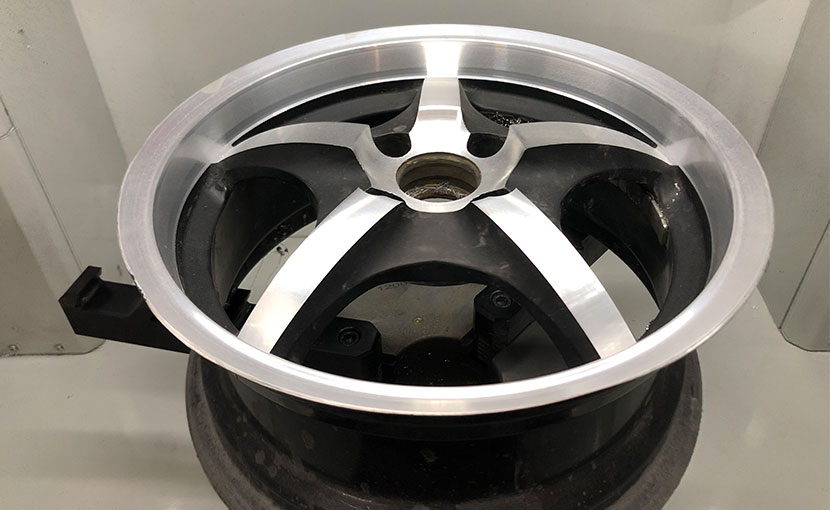

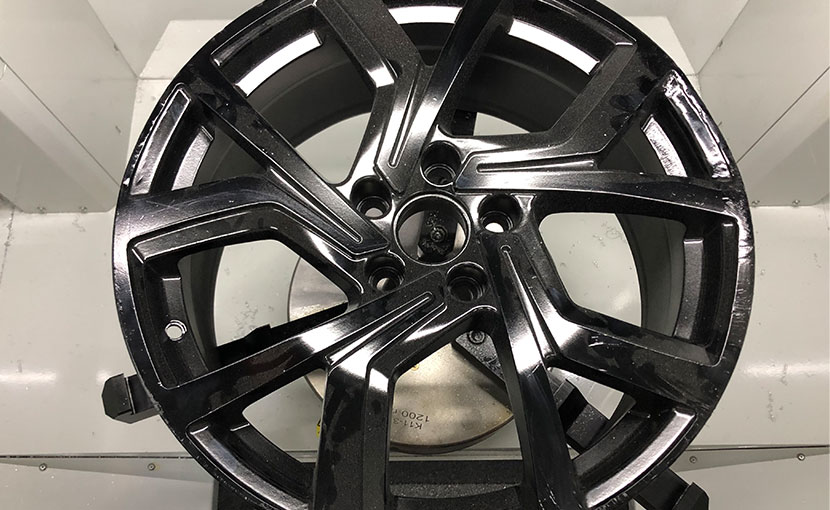

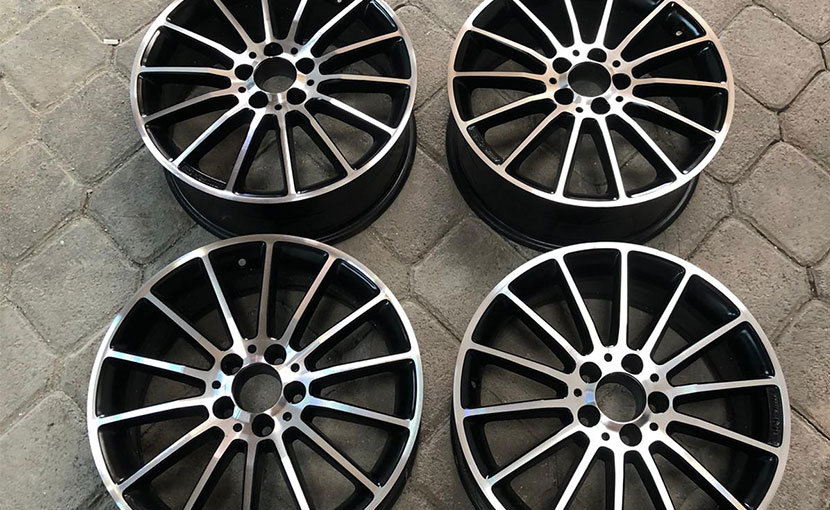

The expert of brighter and smoother wheels, Elegance CNC Wheel Diamond Cutting Expert offers you wheels that will look like they have just been released from the factory.
Pre-Meetings
R&D
Design
Over 1000 emails, over 120 hours of pre-meetings, over 1500 hours of R&D work, lots of trashed interface designs to find the best, over 900 hours of design, hundreds of page sketches, a few scrapped prototypes, tens of wheels test, and perfect result…
A few things that come to our mind to create Elegance.
Never forget 2,14!
Strong, durable, agile and rigid. This is how we define the design of Elegance CNC Wheel Diamond Cutting Expert. It is a real design wonder with wide-view glass designs, bright interior lighting, Foldable control panel, combined door system and more.
We know that there is no space for anything unnecessary. That's why we have prepared a solid cabinet design that will store all features within 2,14 m2. Let's see, what we have done for you.
TOUCHSCREEN
The touchscreen computer, which contains the Windows OS.
WI-FI
Integrated Wi-Fi system, while also providing Wi-Fi report printing and e-mail sending features.
FULL HD
1080P Full HD resulation
15,6" or 17,3"
The control panel, which is specially designed for you to be in the best position during operation, provides a wide viewing experience with its superior ease of use and 17.3" or 15.6" Full HD touch screen
NEW MODE
PRO MODE
FREE MODE
OPEN
Follow me, Step by step.
We know, you are professional.
Beautify with your hands.
Create your own archive.
Simulation
Did we overdo it?
“I wish we could see what kind of cutting it would be before proceeding to the machining process”, we seem to hear what you said. We listened to what you said and developed the Simulation Mode for you.
Choose how close you want to get to the rim and start the simulation by turning the handwheel. Whether you go forward or back. Don't forget, only in ATEK.
Laser
TouchProbe
Laser & TouchProbe
Continue to make precise measurements with the laser measurement system specially designed for speed lovers. Laser is standart with
L-01H, L-01HV (coming soon), TPL-01H and TPL-01HV.
Get precise measurements with the touchprobe scanning system with 0.001mm repeat accuracy. TouchProbe is standart with
TP-01H, TP-01HV, TPL-01H and TPL-01HV.
We combined the touch probe for the most precise work and the laser when you need to be fast, and we created the TPL series for you. TouchProbe and laser is standart with TPL-01H and TPL-01HV. Don't forget, only in ATEK.
Horizontal
Vertical
With the horizontal cutting mode developed to cut the upper surface of the rim up to 28 inches, you can cut by taking a measurement by laser or probe.
You can have horizontal cut with 01H and 01HV models.
Probe horizontal
Laser horizontal
Laser vertical
Probe vertical
Thanks to the vertical mode designed to cut the side surfaces of the rims up to 22 inches, you can cut either by probe or laser measurement.
You can have vertical cut with 01HV models.
Print or E-Mail
Satisfy your customer.
We know that every car owner wants to know what action is taken on their car. So, Elegance CNC Wheel Diamond Cutting Expert creates a detailed report for you to print with an external printer or through Wi-Fi printer. If you only want to send digital reports to protect nature, Elegance can also e-mail the report for you.
DETAILS
Advantage
• Step-by-step user friendly interface
• Handwheel simulation mode
• Free-mode for deburr
• Open mode for previous works
• Save, e-mail, print
• Up to 20.000 job storage
• Ergonomic and movable control panel
• Totally enclosed body design
• Reinforced steel skid body
• Rigid body design
• Compact design to save space
• Long-lasting electrostatic powder painting
• Rim protection in case of power cut situations
• Combine slider door
• Turning without removing the tire
• Online free training (20 hours)
Specifications
• Laser measuring system
• Probe measuring system
• 0.001 mm iteration and positioning sensitivity
• Heavy duty linear guideway (2pcs for each axis)
• Heavy duty ball screw
• Electronic safe door lock
• Led interior lighting
• Embeded interior camera for reports
• Black chrome chuck clamps
• Skid protection brushes
• Ergonomic chip pan
• Led tower light with buzzer
• 4 point fast and manual lubricating
• Air-cooling for machining
Accessories
Technics
Dimensions
• Left cutting tool
• Right cutting tool
• Straight cutting tool
• Ratchet handle
• Ratchet handle extension
• 10 mm hex wrench
• Cutting tool hex wrench
• 3 mm hex wrench
• Atek closed circuit control system by Syntec Co.
• 1.1 kW X axis motor
• 1.1 kW Z axis motor /w brake
• 380V 5.5 kW spindle motor (1250 rpm)
• 28" horizontal cut
• 22" vertical cut
• 15" max. Cut height (381 mm)
• 12" chuck with reinforced clamps
• Width (mm) 1320
• Length (mm) 1620
• Height (mm) 2245
• Weight (kg) 970
MODELS
TP-01H
TP-01HV
L-01H
L-01HV
TPL-01H
TPL-01HV
√
X
√
√
√
√
√
17,3" Opt
√
√
X
√
√
√
√
√
√
√
√
17,3" Opt
√
√
X
√
√
X
√
√
√
√
√
17,3" Opt
√
X
√
√
√
√
√
√
√
√
√
17,3" Opt
√
X
√
√
√
X
√
√
√
√
√
17,3" Opt
√
√
√
√
√
√
√
√
√
√
√
17,3" Opt
√
√
√
√
Wheel Capacity
• 28" Horizontal Cutting (381 mm Rim Height)
• 22" Vertical Cutting
• 12" Chuck /w reinforced BlackChrome Clamps
Software
• Elegance Cutting Expert Software by ATEK
• Windows Operating System
• Save & E-Mail Report Modules
(Direct Print Module with external Printer)
Computer
• Interior Camera for Before/After Report
• Standard 15.6" Touch Screen (17.3" Opt.)
• 802.11ac Wi‑Fi Wireless Networking
• Probe Measuring System
• Laser Measuring System
Measuring
Educate
• Free Online Training (20 Hours)
